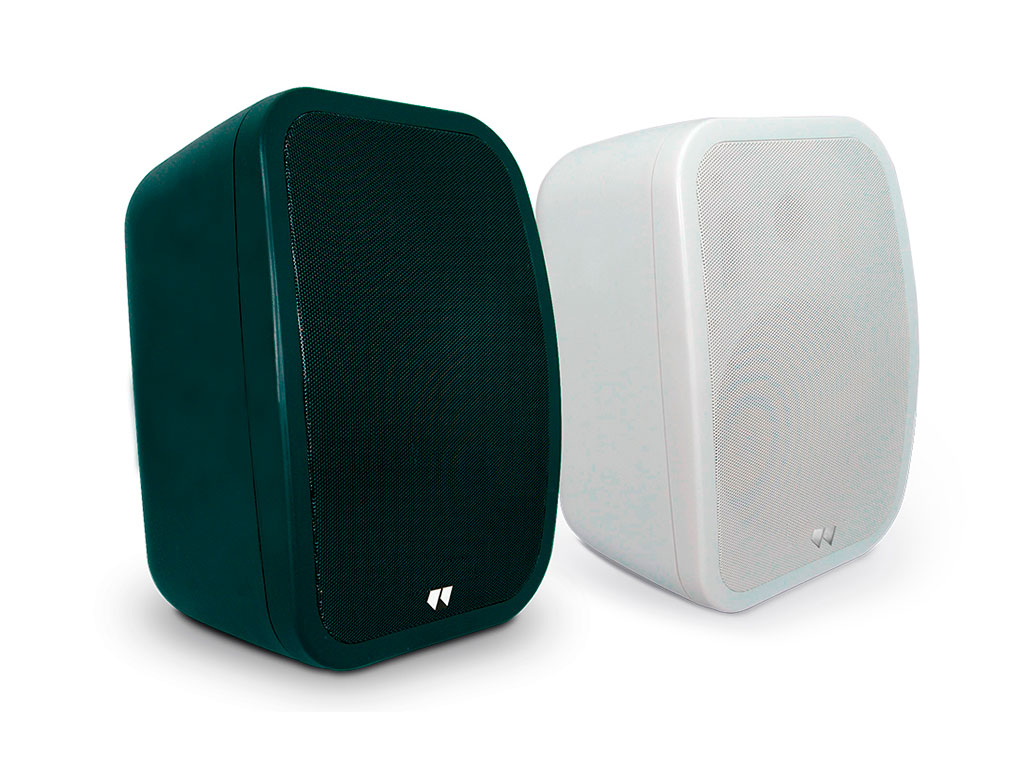

NEO 5A ES is a solution that allows you to take advantage of the implicit benefits of using amplified systems and at the same time be an energy efficient solution as it incorporates a sensor at the audio input that, when it does not detect an input signal, puts all the amplification equipment in a state of suspension, reducing consumption to less than 1W. When the system detects a signal again, it is automatically activated, amplifying it. NEO 5A ES has been certified to comply with the ErP EN 50564: 2011 standard, guaranteeing that the product is designed according to energy efficiency standards. Sold in pairs (active box + passive box). Available in two colours: black and white.
- Passive loudspeaker powered from active loudspeaker.
- Auto-off function.

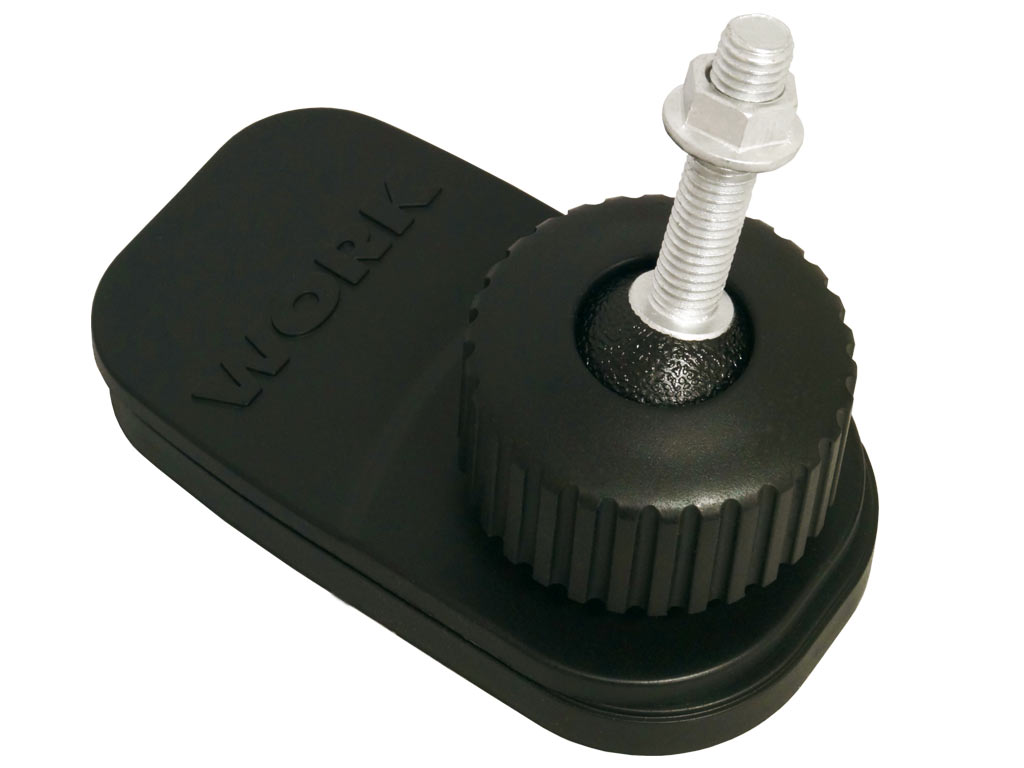

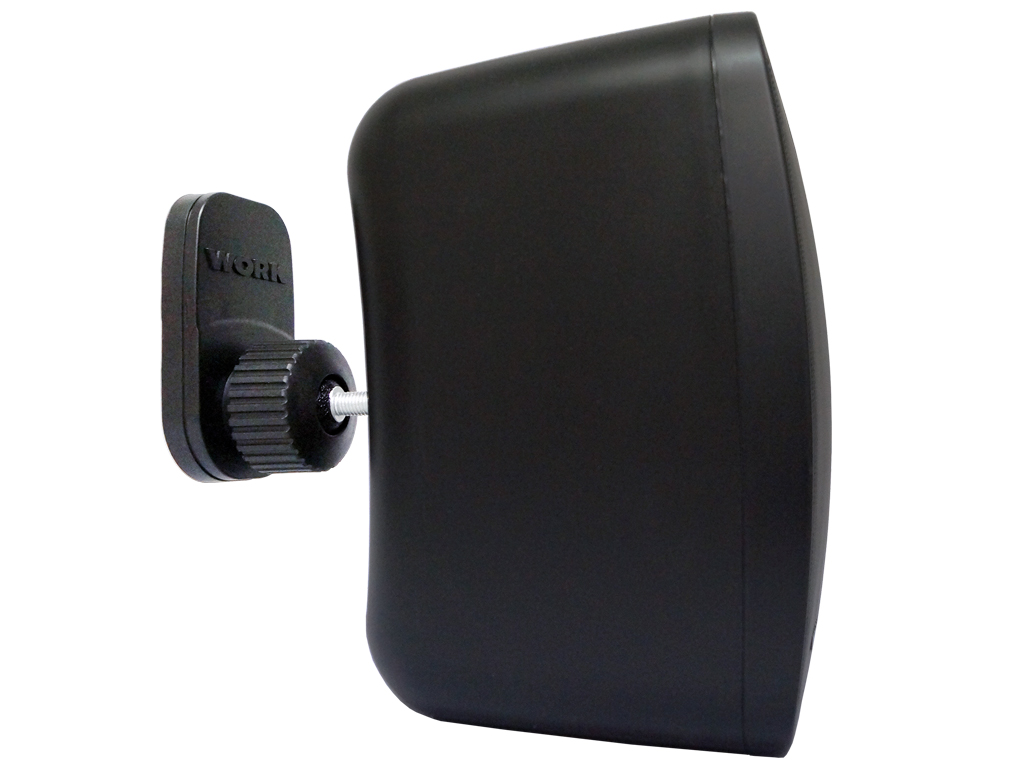

- Wall brackets included.
- IP 54 range.
Personalised advice
Do you need help choosing your product? We will be happy to help you with your project.
| Type | 2 vías. Activa + pasiva/ 2 ways. Active + passive |
| Power | 2 x 25 W RMS |
| LF Transducer | 5.25" Woofer |
| HF Transducer | 0.5" Tweeter |
| Input Sensitivity | 1V / 2.21 dBu |
| Sensitivity (1W @ 1m) | 91 dB |
| SPL Max | 107 dB |
| Coverage Angle (H x V) | 90º x 70º |
| Frequency Range | 60 Hz - 20 KHz |

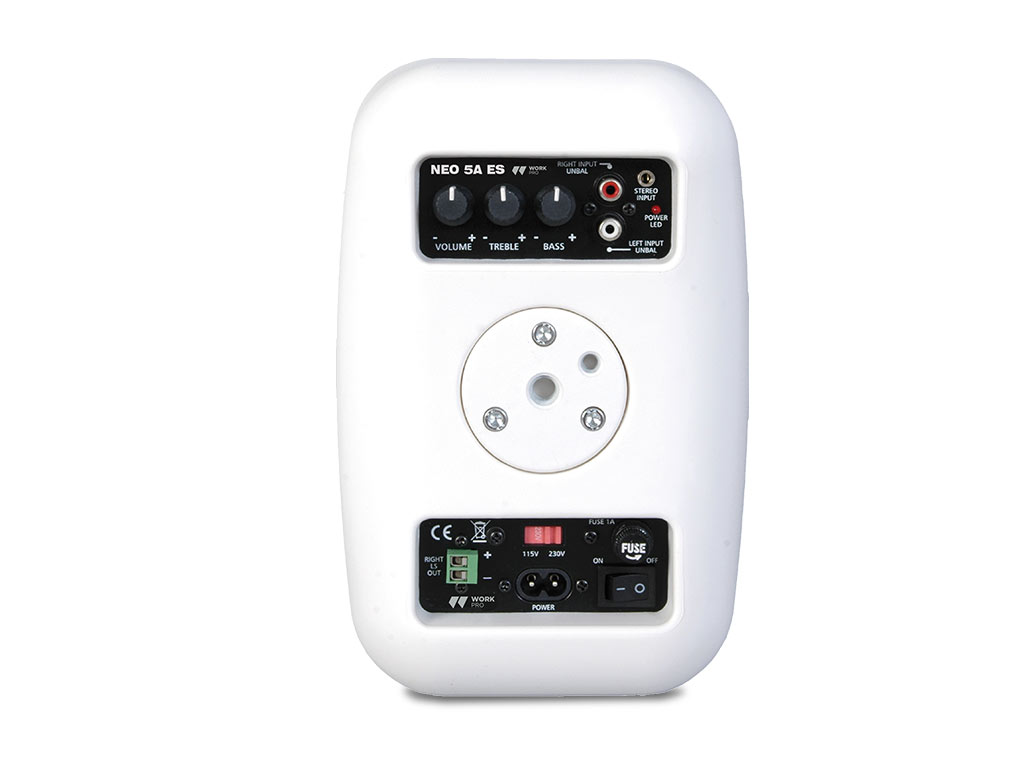

| Connections | Audio In: 2 x RCA, 1 x Minijack 3.5 mm, Amp Out: Euroblock 2 pin, Passive: 2 x Binding post |
| Controls | Power switch, Volume, Tone control (high, low), Voltage selector |
| Enclosure material | Polypropylene |
| Grill | Aluminum |
| Inserts / Rigging | Wall brackets (included) |
| Colour | White (RAL 9003), Black (RAL 9004) |
| IP Protection | IP54 |
| Standards and Certifications | EN 62301:2005+1275/2008/EC |
| Length(m) | Width(m) | Height(m) | Weight(kg) | |
|---|---|---|---|---|
| Product | 0.17 | 0.17 | 0.24 | 4.40 |
| Box | 0.20 | 0.37 | 0.32 | 6.20 |
| Master Carton | 0.39 | 0.41 | 0.67 | 24.00 |
